Lessons and Takeaways from Setting up a Starlink in the Woods

Mitch Feigenbaum - https://mitchf.me


Background



Requirements

  1. Connect to the Internet
  2. Set up a guest network and a private security camera network
  3. Make it secure
  4. Allow for remote access to the security cameras

Initial Challenges

  1. Starlink router is very limited a. No guest network capability b. No ethernet adapter
  2. Trees block the view (especially in the Spring)

Dealing with the limited Starlink router

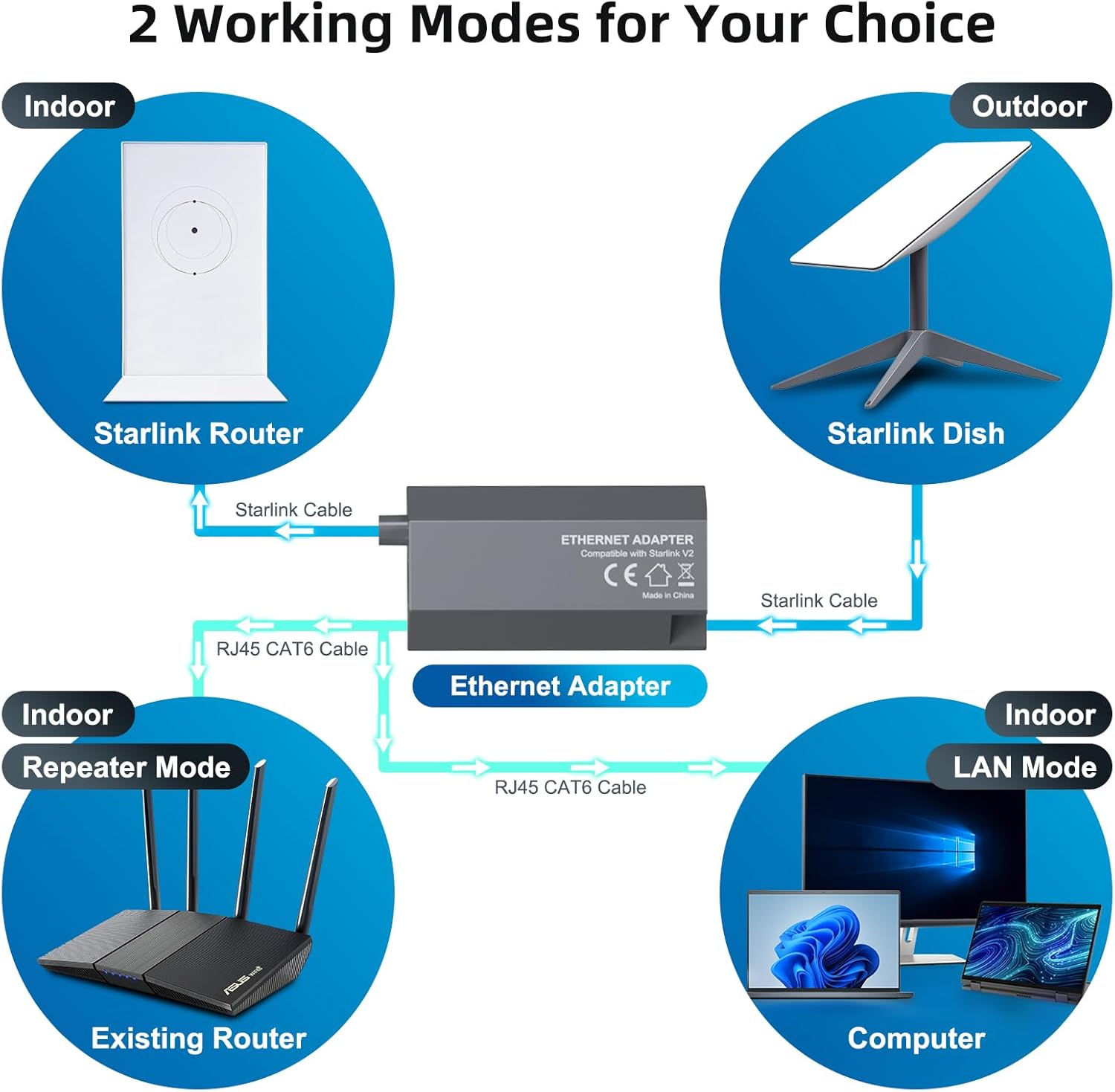

  1. Use a third party ethernet to micro usb-c adapter between the router and the dish

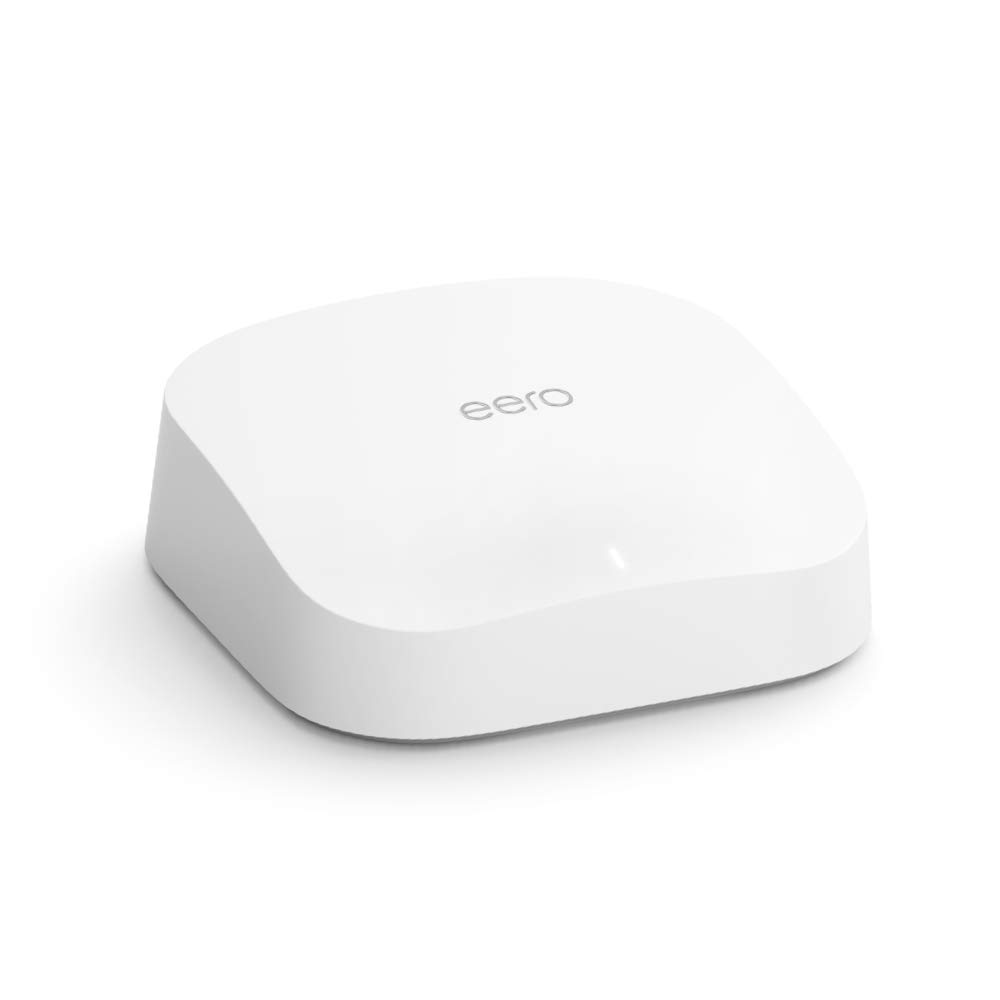

  2. Use a third party router (EERO Pro 6) to allow guest network functionality

bg contain



Dealing with the trees

  1. Used a mount on the side of the house to get a better view
  2. Still 3% obstacle obstruction (as calculated on app), causes intermittent outages

Now the fun part

Good news

Bad news


How we solved it

Not easily


A note on the Starlink Subscription


Starlink account database speculation


Setting up the cameras

  1. Used cobra cameras connected to the EERO router with a 100 foot ethernet cable
  2. Connected the EERO router to the Starlink router via the adapter

Yet Another Issue

  1. The EERO router has an easy mobile interface that allows you to change settings
  2. The EERO router has support for UPNP, which the cameras use to connect externally
  3. The Starlink Router is unable to be configured until it downloads an update, which automatically happpens… at 3am
  4. This can be mitigated by using the Starlink router in bypass mode… which requires the router configuration… which is unavailable until the update is installed

Final Configuration


Takeaways

  1. Everything takes more time on the mountain
  2. Starlink needs to think about its actual use case

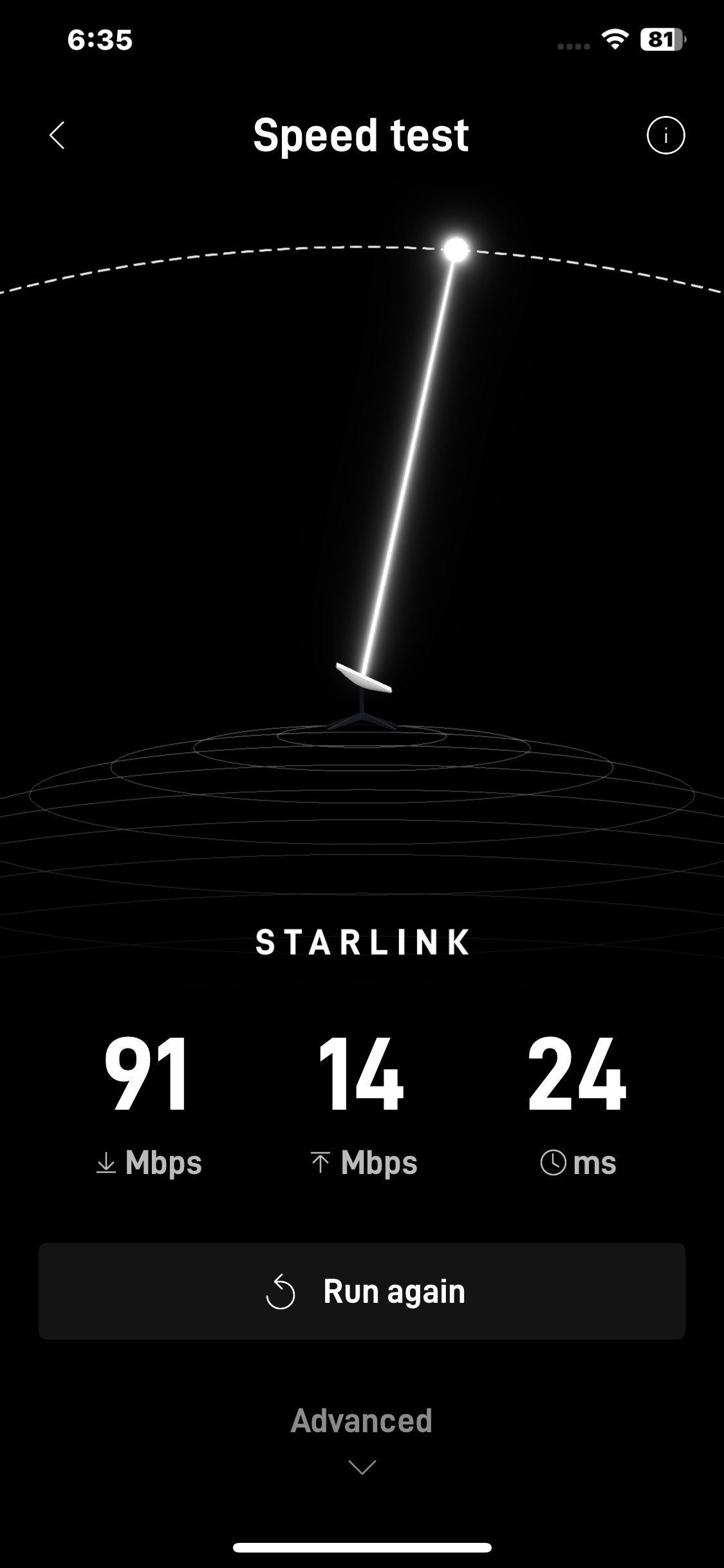

  3. It all sort of works, impressively (90 mbps down, 15 mbps up)

bg contain
